Gastronorm 2/1 food boxes

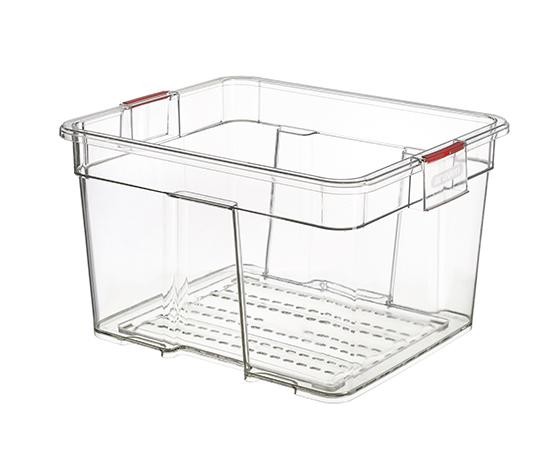

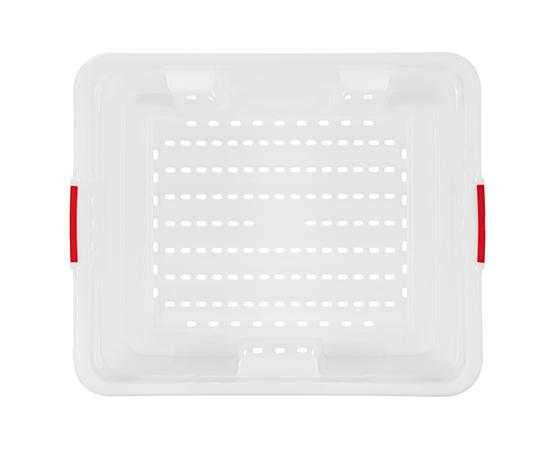

GN 2/1 Food boxes to keep and preserve big volumes of food. Also, perforated bottom versions are optimum for defrost processes. Food will be placed inside the perforated drain box nested into the other food box, that will keep the liquid that comes out of food,  avoiding leaking and contamination of other food. Lower food fox will keep the liquid that comes out of food avoiding contact with food. Food should be covered with a lid to avoid contaminations.

Food identification systems integrated in the pieces to allow easy identification of the content and preserve the information associated with its origin or its manipulation (dates of elaboration, expiration or origin).

The color coding system is positioned at the base and allows reducing the risk of cross contamination and identifying the type of food that is stored in the container.

Polyethylene High density or ABS.

BPA Free

Bisphenol A free

MATERIAL: ABS

Made of ABS: high resistance to impact. Very tough, durable

ColorClip

Colour coded to avoid cross-contamination. Araven Containers, thanks to their ColorClip identification, help prevent Cross Contamination, ensuring that the contents of this container will always be of the same nature: poultry, red meat, vegetables/fruits or fish.

Watch video

Double trough position

Nestable position or stackable position without lid

Nestable

Nestable

Scale content

Measuring strip and measuring indicator

Integrated label

The permanent label allows cooking professionals to identify the contents and keep information on the origin, aiding compliance with food Traceability Regulations Reg (CE) 852/2004 and Reg (CE) 178/2002 .

Watch video

Integrated label leaves no residue

It looks as good as new wash after wash in the dishwasher.

Material: High Density Polyethylene

Made of HDPE, a material with high impact resistance and excellent low-temperature performance.

Gastronorm sizes

Products designed and manufactured according to the dimensions and specifications established in the EN 631.1 Standard. It allows the part to be registered in the oven guide and in any GastroNom housing.

Optimum geometry

Designed for correct evacuation of exudate. They comply with health and hygiene regulations which recommend avoiding contact between food and exudate.

Watch video

Handles

Side handles for easy handling and transport.

Watch video

TEMPERATURES POLYPROPYLENE

Max.Tem. +95 ºC +203ºF

Min. Tem. -40 ºC -40ºF



ItemColorEANaProduct dimensions - mmBox dimensions - mmUnits per boxBoxes per layerEURO 80x120x120EURO 80x120x240Capacity (L)
04069

8411777040694650x530x300660x545x4052282070
04079

8411777040793650x530x300660x545x4052282070
04080

8411777040809650x530x380660x545x4802281690
04070

8411777040700650x530x380660x545x4802281690
04071

8411777040717650x530x20640x560x552280164
74070

8411777740709650x530x380660x545x4802281690
74069

8411777740693650x530x300660x545x4052282070
74079

8411777740792650x530x300660x545x4052282070
74080

8411777740808650x530x380660x545x4802281690
74071

8411777740716650x530x20640x560x552280164
ItemColorProduct dimensions - mmUnits per boxCapacity (L)
04069

650x530x300270
04079

650x530x300270
04080

650x530x380290
04070

650x530x380290
04071

650x530x202
74070

650x530x380290
74069

650x530x300270
74079

650x530x300270
74080

650x530x380290
74071

650x530x202

ItemColorEANProduct dimensions - inchesBox dimensions - inchesUnits per boxBoxes per layerEURO 80x120x120EURO 80x120x240Capacity Oz.
04069

841177704069425 5/8x20 7/8x11 3/426x21 1/2x162282018 Gal
04079

841177704079325 5/8x20 7/8x11 3/426x21 1/2x162282018 Gal
04080

841177704080925 5/8x20 7/8x1526x21 1/2x18 8/92281623 Gal
04070

841177704070025 5/8x20 7/8x1526x21 1/2x18 8/92281623 Gal
04071

841177704071725 5/8x20 7/8x3/425 1/5x22x2 1/62280164
74070

841177774070925 5/8x20 7/8x1526x21 1/2x18 8/92281623 Gal
74069

841177774069325 5/8x20 7/8x11 3/426x21 1/2x162282018 Gal
74079

841177774079225 5/8x20 7/8x11 3/426x21 1/2x162282018 Gal
74080

841177774080825 5/8x20 7/8x1526x21 1/2x18 8/92281623 Gal
74071

841177774071625 5/8x20 7/8x3/425 1/5x22x2 1/62280164
ItemColorProduct dimensions - inchesUnits per boxCapacity Oz.
04069

25 5/8x20 7/8x11 3/4218 Gal
04079

25 5/8x20 7/8x11 3/4218 Gal
04080

25 5/8x20 7/8x15223 Gal
04070

25 5/8x20 7/8x15223 Gal
04071

25 5/8x20 7/8x3/42
74070

25 5/8x20 7/8x15223 Gal
74069

25 5/8x20 7/8x11 3/4218 Gal
74079

25 5/8x20 7/8x11 3/4218 Gal
74080

25 5/8x20 7/8x15223 Gal
74071

25 5/8x20 7/8x3/42
